Zinc Alloy Plane lock of AB301
Plane lock
Products Categories
Featured Products
Hot sales Industrial Hinges of CL213-1

Hot sales Industrial Hinges of CL213-1
Industrial Hinges Factory of CL6065

Industrial Hinges Factory of CL6065
Industrial Hinges Factory of HL006

Industrial Hinges Factory of HL006
Zinc Alloy Industrial Hinges Factory of CL234

Zinc Alloy Industrial Hinges Factory of CL234
Zinc Alloy Industrial Hinges of CL204-2

Zinc Alloy Industrial Hinges of CL204-2
Popular Industrial Hinges of HL093

Popular Industrial Hinges of HL093
Popular Industrial Hinges of CL233

Popular Industrial Hinges of CL233
Industrial Hinges of HL019

Industrial Hinges of HL019
Zinc Alloy Industrial Hinge of CL213-2

Zinc Alloy Industrial Hinge of CL213-2
Zinc Alloy Hinge of CL20

Zinc Alloy Hinge of CL20
0102030405
Zinc Alloy Plane lock .jpg
Plane lock of AB301.jpg
Zinc Alloy Plane lock .jpg

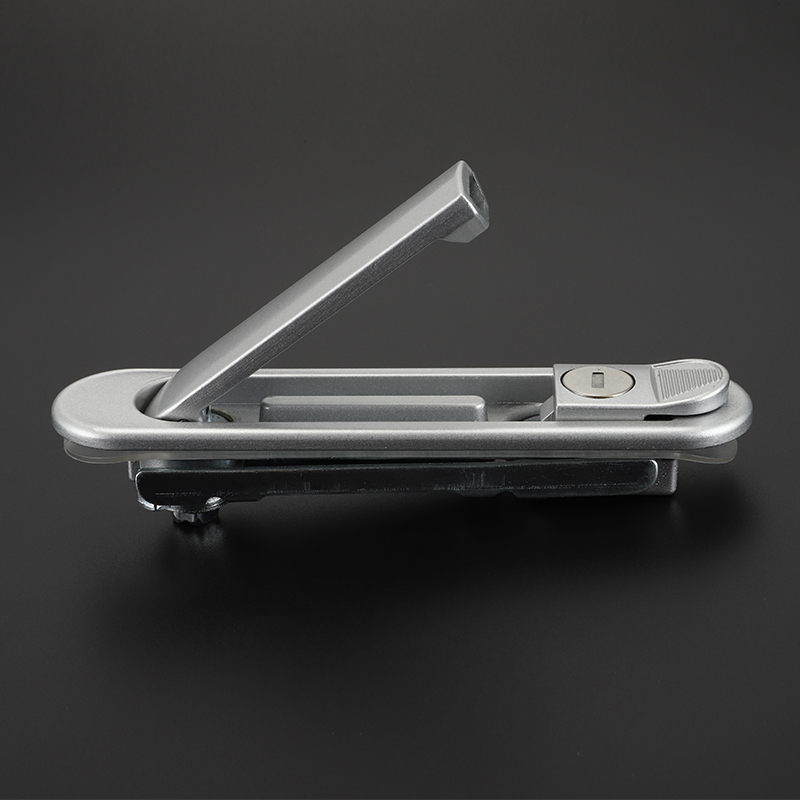

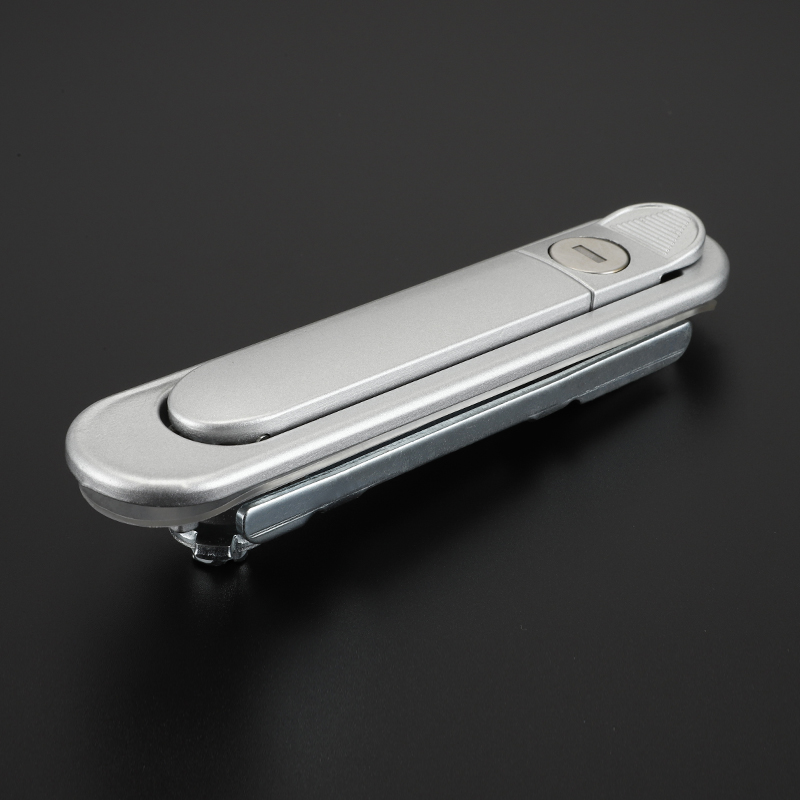

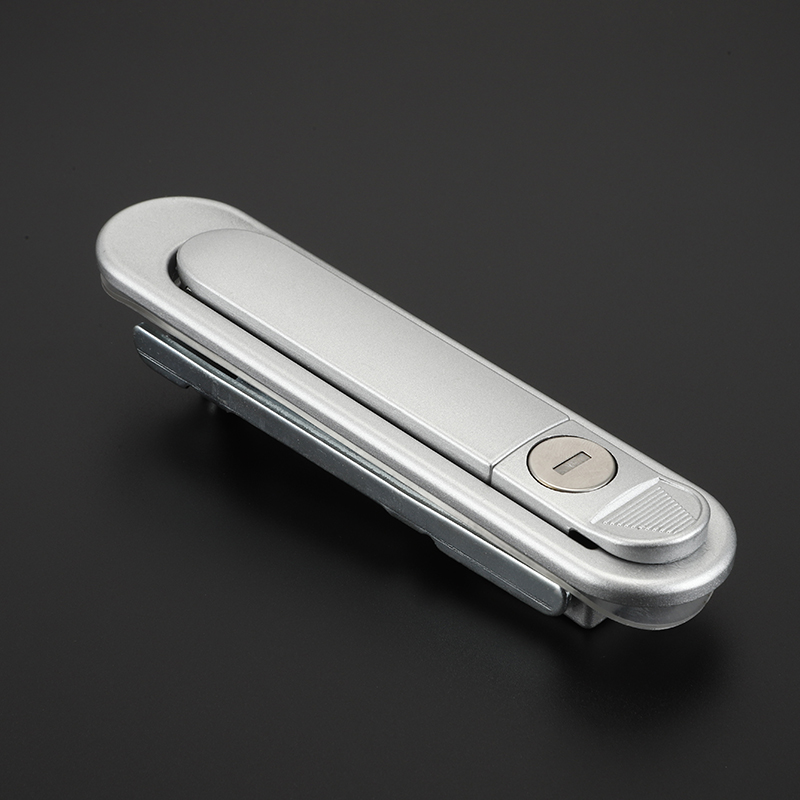

Zinc Alloy Plane lock of AB301

  • Product name Plane lock
  • Type AB301
  • Material Zinc alloy
  • Finish Matte black, sand chromium
  • Open method After turning the key clockwise to the end position, pull down the lower slide key, and after the handle pops up, turn it clockwise 90°(adjust the positioning plate as needed to achieve left-hand opening and left-hand turning.)
  • Applicable door panel Thickness 1-3mm
Contact us
Product Details

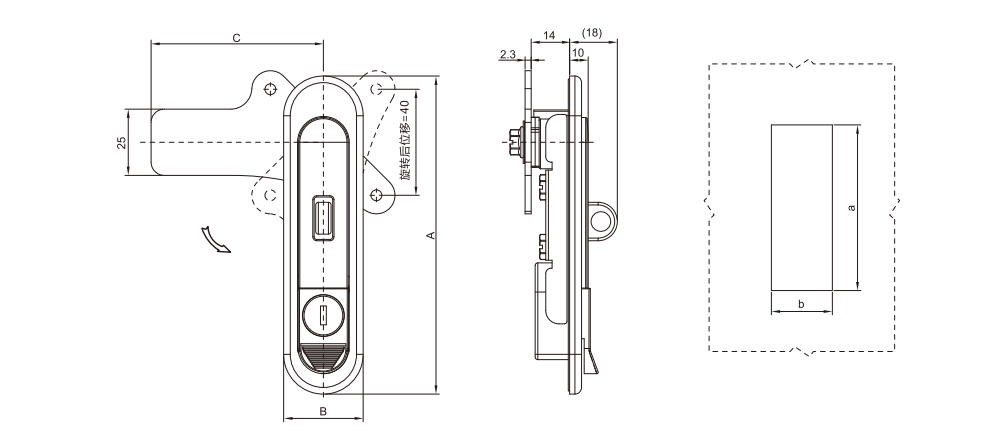

Dimension

Zinc Alloy Plane lock of AB301.png

SIZE

MODEL

NET WEIGHT

PCS(set/box)

NOTE

b

a

C

B

A

26.5

116

100

33

146

AB301

278g





23.5

96

65

30

120

AB302

191g

100 Set/box



23.5

96

65

30

120

AB302-2

192g

90 Set / box



23.5

63

65

28

87.5

AB303

130g

150 Set/box
