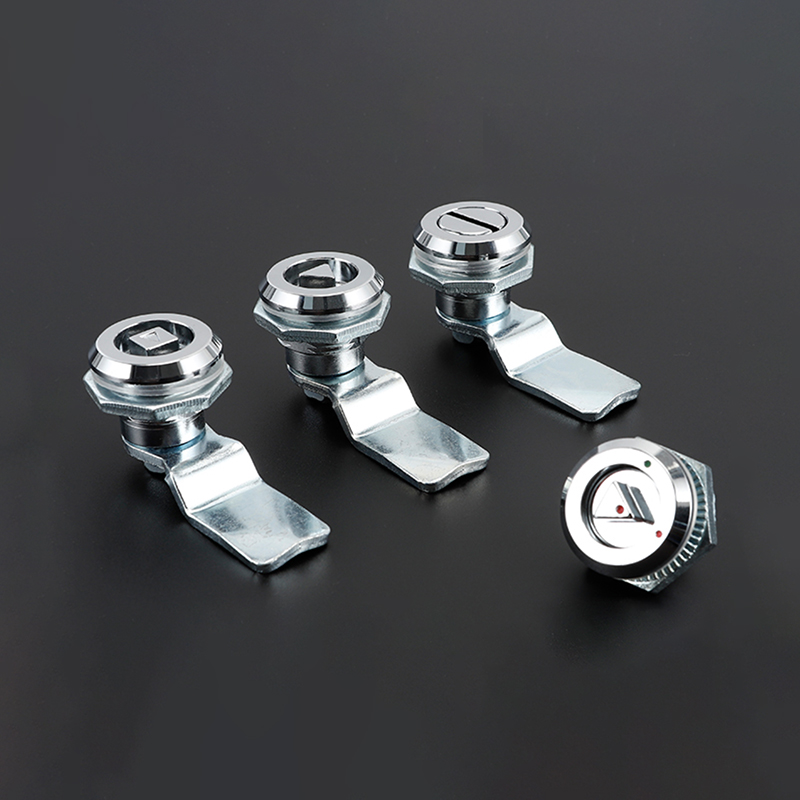

High Security Cam Lock for MS705 series

The MS705 high strength standardized cam lock integrates a robust structure, personalized appearance, and universal adaptability. Meticulously crafted with precision details, it delivers an all-in-one locking solution that exceeds expectations.

Product Details

Product features

1.Flexible adaptability

The MS705's lock housing and cylinder are constructed from high-quality die-cast zinc alloy, offering a compact structure that's wear-resistant and corrosion-resistant, providing a solid first line of defense. The core lock tongue is crafted from 3mm Q235 carbon steel, providing exceptional impact and pry resistance, ensuring durability and resistance to deformation despite frequent opening and closing.

The MS705 also offers a variety of mounting height options. This thoughtful design allows it to perfectly adapt to door frames and mounting panels of varying thicknesses and heights. Whether designing a new cabinet or upgrading an existing one, it offers easy integration and convenient installation.

2 .Diversity of appearance

The MS705 offers tremendous flexibility in surface finishes. Choose from bright chrome electroplating for a classic stainless steel sheen that's easy to clean and exudes a modern, industrial aesthetic. Alternatively, you can customize the MS705 with a custom powder coat finish in a variety of colors, from a gray or classic black to vibrant yellow or bright red for a more prominent warning. This powerful customization allows the MS705 to seamlessly integrate into any application, from data centers and outdoor cabinets to medical equipment and office furniture. While ensuring safety, it also enhances the overall quality of the product.

3.Lock core flexibility

The core competitiveness of MS705 lies in the flexibility of lock cylinders. We offer a wide range of lock cylinders, including slotted cylinders, triangular cylinders, square cylinders, square arrow cylinders, hexagonal cylinders, etc.

4 .Universality of keys

All lock cylinder dimensions of the MS705 strictly comply with international standards. This means it is seamlessly compatible with mainstream tool lock cylinders on the market. For users, the biggest benefit is peace of mind. When a key is lost or a replacement is needed, there is no need to search for specific channels from the original manufacturer, which greatly simplifies subsequent maintenance, management, and procurement processes, significantly reducing usage costs and time costs
