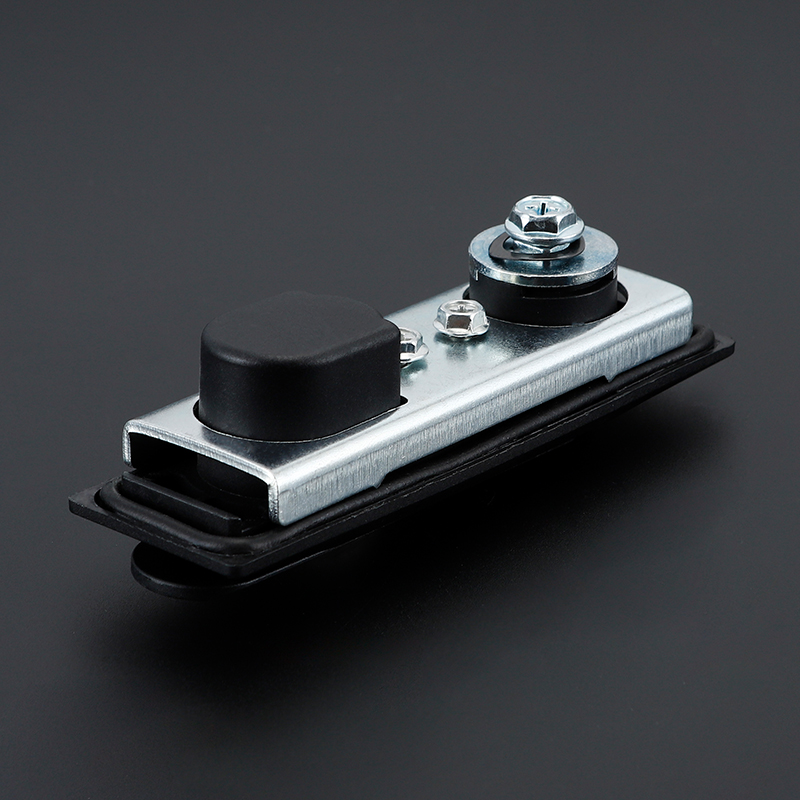

Economic Type Plane lock .jpg

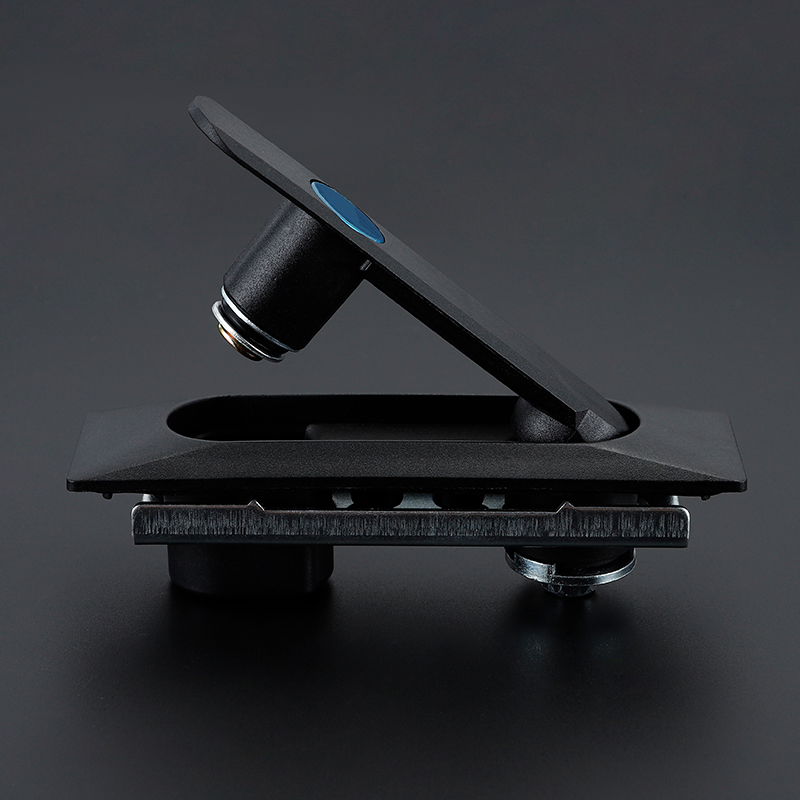

Plane lock of MS861-4.jpg

Economic Type Plane lock of MS861-4

  • Product name Plane lock
  • Type MS861-4
  • Material Zinc alloy or PA material
  • Finish Sand black
  • Open method Turn the key 180° to the left, pull up the handle, then turn it 90° to the right(adjust the positioning plate as needed to achieve left-hand opening with left-hand rotation)
  • Applicable door panel Thickness 1-4mm
Contact us
Product Details

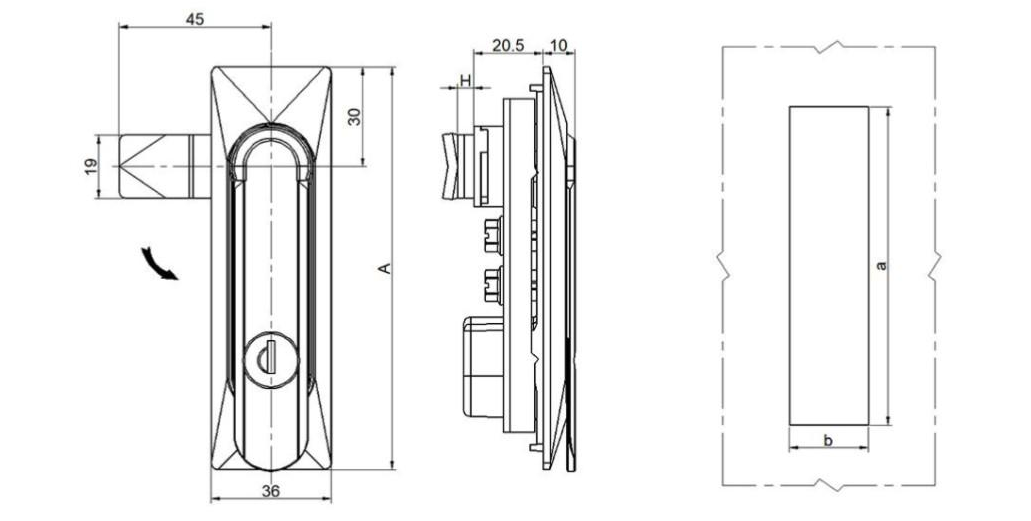

Dimension

Economic Type Plane lock of MS861-4.png

SIZE

MODEL

NET WEIGHT

PCS(set/box)

b

a

A

25.3

150

162

MS861-2

255g

60 Set/box

25.3

110.3

121

MS861-4 with lock cylinder

152g

80 Set/box

25.3

110.3

121

MS861-4 Without lock cylinder

145g

80 Set/box

25.3

110.3

121

MS861 Zinc Alloy Typ

304g

80 Set/box

TONGUE CONFIGURATION

SIZE

H

Optional 4500

0

Optional 4500

5

Optional 4500

7
