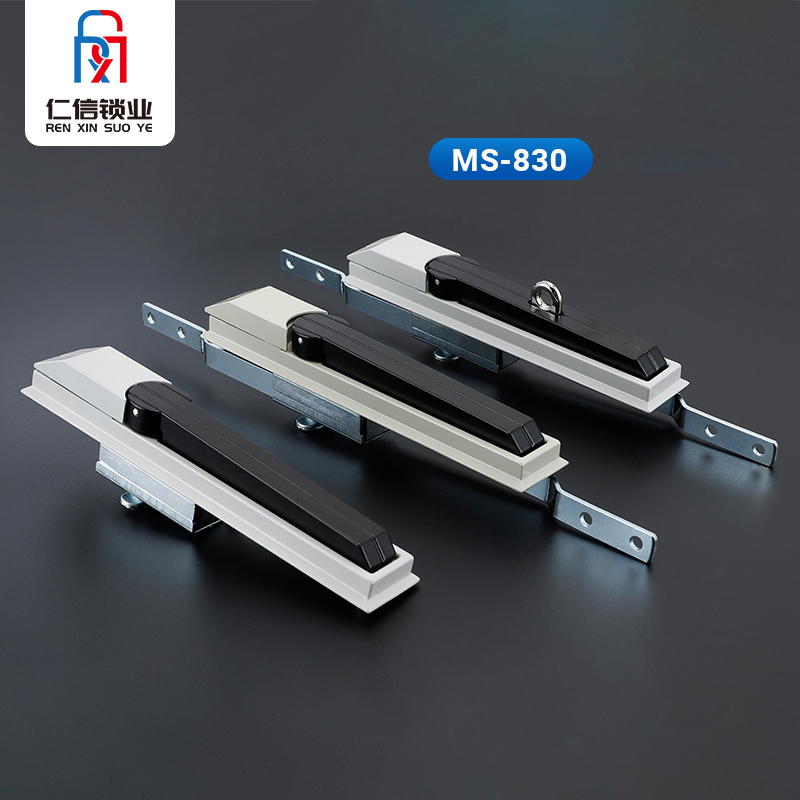

Best-selling connecting rod lock for MS830 series

Product features

1.Durability

The lock body is constructed from high-strength zinc alloy, offering a robust structure and strong corrosion resistance. It maintains a long service life and stable performance even in complex and harsh industrial environments.

2.High Strength

The core highlight of this iteration lies in a significant optimization of the product structure. The new MS830 features a redesigned internal transmission structure and locking point layout, significantly improving the lock's overall strength and anti-pry performance. After rigorous testing, its durability and reliability have reached new heights, effectively ensuring the security of equipment within the cabinet.

3.Customization

In terms of surface treatment, the MS830 offers basic treatments like classic electroplating, as well as flexible multi-color spray-coating customization. Users can freely choose a lock color that matches the cabinet color, corporate logo, or on-site environment requirements, achieving a perfect balance of functionality and aesthetics, helping to create a clean and professional industrial look.

4.Application

The MS830 rod control lock delivers exceptional product compatibility and environmental resilience, engineered specifically for demanding applications in Rittal cabinets and diverse industrial enclosures. Its universal design ensures seamless integration with mainstream cabinet systems, while advanced sealing and corrosion-resistant components enable reliable operation in harsh conditions—including temperature extremes, humidity, and exposure to dust or chemicals. This lock combines versatility with rugged performance to meet global industrial standards.

Product specification

1.Material: Zinc alloy body

2.Finish: Off-white, semi-off-white, beige, semi-beige, sand chrome, semi-sand chrome, matte black

3.Opening method: Push the cover upward, turn the key clockwise 180° to unlock, then turn the handle clockwise 90° to open

4.Applicable door panels: 1-3mm thickness

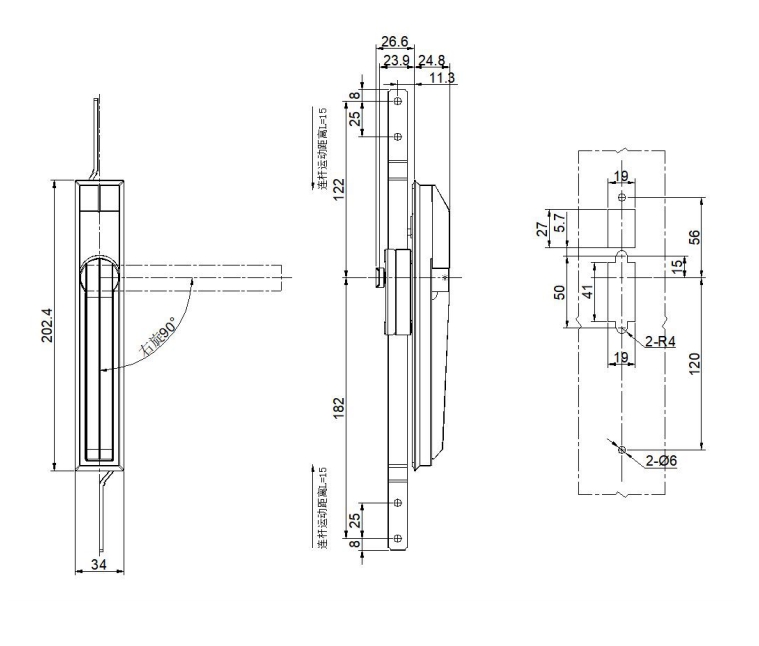

5.Dimension
